Polyglass VEF for prover loops
Prover loop internal corrosion protection.
Scope of work
For the prover loop to be accurate in measuring the flow of crude oil, it is essential that the lining is protected from corrosive properties found in such liquids. Therefore the loop had to be coated with a product that was able to withstand everyday usage.
Products
Polyglass VEF
Fluiglide VE
Substrate
Carbon steel
Coating system
The surface was then blasted to a cleanliness standard of ISO 8501-1 cleanliness standard SA 2 1/2. with a minimum surface profile of 50 microns. One coat of Corrocoat’s Polyglass VEF was then applied using Agmec’s airless spray pump. A layer of Fluiglide VE was then applied to the inside surface of the pipe, using the airless spray application utilising the Agmec Internal pipespray machine.
External coating system
Grit blasted externally to ISO 8501-1 – Cleanliness Standard SA 2. Applied two coats of Plasmet ZF with a topcoat of Corrothane AP1.
Coating credentials
The whole of Corrocoat’s Polyglass range has proven highly effective in extremely corrosive environments. Polyglass offers a remarkably low permeation rate, combined with excellent resistance to abrasion and cathodic disbondment. The system provides an effective, long term corrosion barrier, preventing reductions in performance due to surface corrosion.
Photographs
A prover loop system

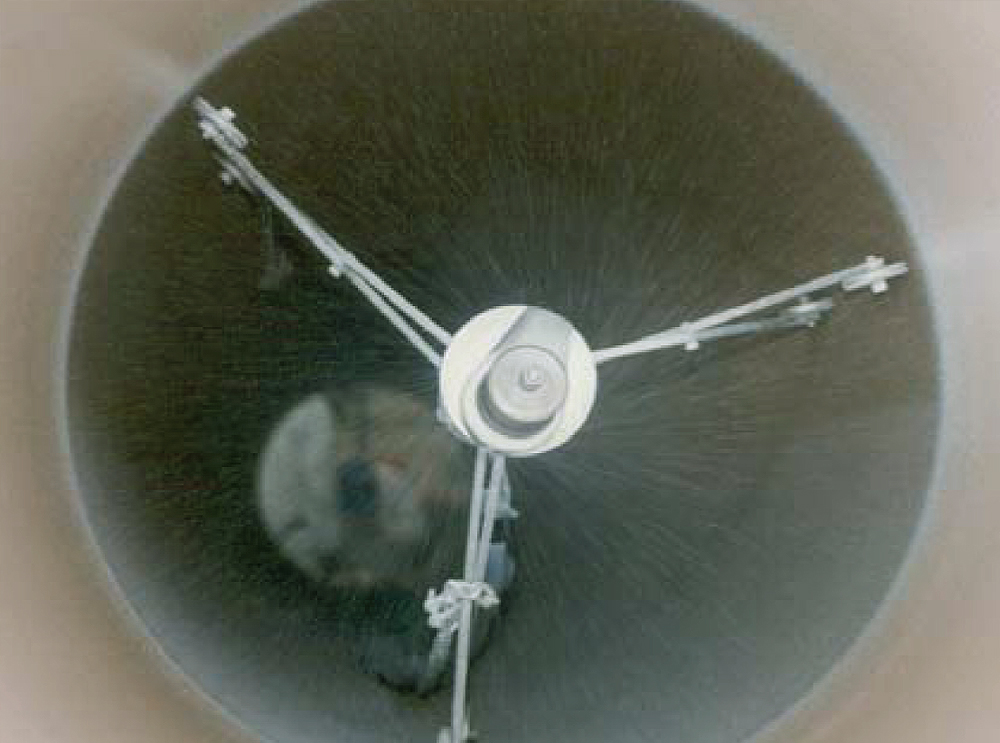

Agmec internal pipespray machine

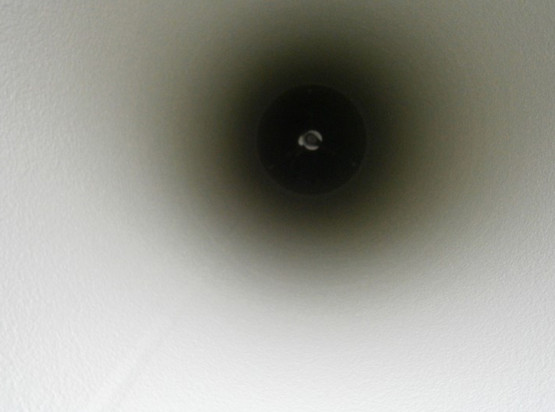

After Polyglass VEF application
